英國著名航空發動機公司羅爾斯-羅伊斯目前已將速得自動吊鉤產品投入其在新加坡的SATU工廠，用于發動機的組裝和測試環節的吊裝作業上。

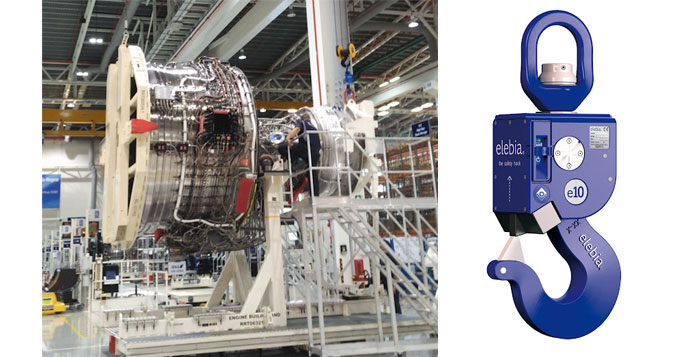

Rolls-Royce is using Elebia automatic hooks during lifting and rigging operations at its Seletar Assembly and Test Unit (SATU) in Singapore, where Trent engines are assembled and tested.

此工廠主要承接客機大型發動機的最后組裝作業，近期在接到交付使用的第二臺最大工作載荷為10噸的速得自動吊鉤后，已在考慮訂購更多的自動吊鉤來滿足實際作業需要。

The facility, which completes assembly of large engines primarily for aircrafts, has recently taken delivery of its second e10 hook and is already considering placing orders for additional units.

此自動吊鉤配合高架橋式起重機，可用于起吊各種模塊化設備零部件和整體引擎。在組裝作業過程中，不同的模塊零部件自重介于1噸到2噸之間，組裝后的整體引擎可重達5噸。此外，很多起吊作業中也用到了一些在25到50公斤之間的重型工具。

The hooks work with overhead cranes to lift modules and engines. Trent engine modules weigh between 1t and 2t, while a complete engine is 5t. Heavy tooling is also incorporated into many lifts, weighing between 25kg and 50kg.

此工廠配備有先進的生產線設施，可實現Trent900和Trent1000兩種型號的航空引擎同時進行組裝和測試作業。當達到滿負荷工作狀態時，此工廠的引擎年產量將達到250臺。

The state-of-the-art facility is designed to allow simultaneous assembly and testing of Rolls-Royce Trent 900 and Trent 1000 aero engines. At full capacity SATU can produce up to 250 engines per year.

SATU工廠生產領班Bok Thye Boon講到，速得自動吊鉤使用簡便，而且更重要的是，它使得原本需要生產操作人員親自將引擎零部件甚至是引擎整體掛靠到吊裝設備上的結索工作僅通過對自動吊鉤本身的遠距離安全遙控操作即可完成。以前，在將扇葉罩安裝到引擎核心之上時，我們的起重葫蘆要鎖定達兩天的時間，直到引擎可以轉動到水平的位置�，F(xiàn)在，有了自動吊鉤以后，起重葫蘆可以不受制約地用于其他作業了。我們尤其欣賞的是，此自動吊鉤在吊裝作業進行的過程中還有一項能夠防止吊鉤意外打開的安全防護功能。

Bok Thye Boon, production leader at Rolls-Royce’s SATU facility, said: “The Elebia hooks are simple to use and keep crane operators and those responsible for rigging at a safe distance when connecting modules and engines to lifting equipment. Previously, when we joined the engine core to the fan case, our crane hoist was locked away for two days until the engine could be rotated to a horizontal position. Now, with the Elebia hook, we can free up the crane hoist for other usage. We particularly like the fail-proof safety features that prevent the hook from opening when a lift is taking place.”

主要負責引擎最后組裝工作的Boon解釋道，在使用速得自動吊鉤之前，吊裝引擎核心到扇葉罩上需要花費4個小時，然后連接其他引擎零部件和緊固法蘭螺栓的作業需要40個小時，之后翻倒整個引擎還需要4個小時�，F(xiàn)在，引擎核心吊裝到扇葉罩之后，我們只需要用自動吊鉤將起重葫蘆從引擎工具上拆下就能進行接下來的翻倒作業。

Boon, who is principally responsible for final engine assembly, explained that prior to using the Elebia hooks, it took four hours to lift the engine core to the fan case, 40 hours to connect other engine parts and tighten the flange bolts before tipping, plus an additional four hours to tip the engine. Now, the engine core is lifted to the fan case and the Elebia hook is used only as required to detach the hoist from the engine tooling and handle the tipping operation.

Boon還補充道，有了自動吊鉤，我們可以多出16-20個小時的時間來進行其他吊裝作業，否則我們還需要再另外購置一整臺起重機，這將會大大增加現有的設備費用支出。

Boon added: “With the Elebia tool, we can free-up 16 to 20 hours additional crane capacity on our current hoist to support other lifting work. We almost purchased another crane to support our factory’s lifting requirements, an investment forecasted to exceed [Singapore] $350,000.”

SATU工廠的工程師最早向Boon提出了使用速得自動吊鉤的想法，然后通過和起重機制造商德瑪格的廣泛研究探討之后，最終將此創新性的產品應用到了SATU工廠。

SATU engineers first alerted Boon to the Elebia automatic hook concept earlier this year and, further to extensive research and consultation with overhead crane manufacturer, Demag, it introduced the innovation to the facility.

已獲專利認可的速得自動吊鉤利用電磁工作原理，可以完成鋼質吊索具的自動定位連接，實現了結索作業的遠程自動化控制操作。目前，速得自動吊鉤有5噸、10噸和20噸共三種規格可以選擇。

The patented Elebia hook is equipped with a magnet that both attracts and positions slings and other rigging gear. In 2010, the e10 was launched before second generation versions followed (the evo5 and evo10) two years later.
